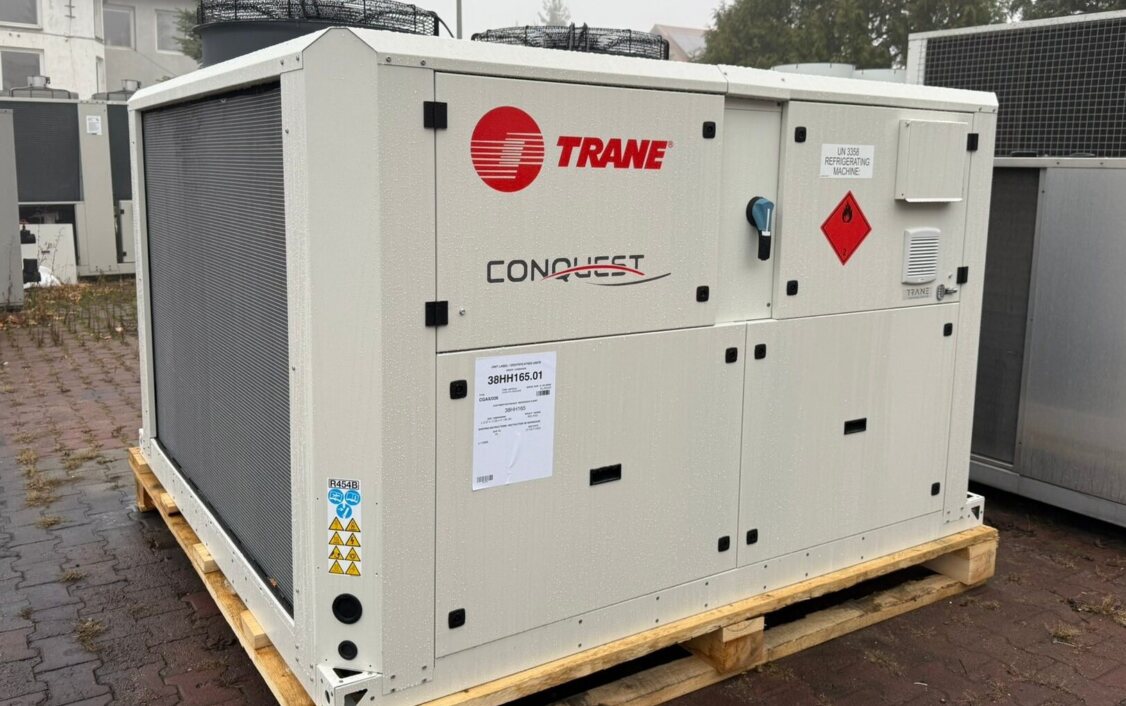

Trane CGAX 036 HE LN chiller
Trane CGAX 036 HE LN EC: more capacity, less noise
The Trane CGAX 036 HE LN is a brand new chiller designed for plants that need capacity, safety and low noise. In the selection conditions it delivers 92.14 kW of gross cooling at a total power input of 32.03 kW, on a 35% glycol solution, which is harder than pure water. The LN (low noise) version has additional acoustic insulation of the compressors.
Selection on glycol
Selection for outdoor air of +35°C and 35% ethylene glycol cooled from +11°C to +6°C. This solution freezes only at -20°C and protects the installation in winter. Net EER is 2.81, and on pure water capacity and efficiency are even higher.
Key features
- Three hermetic Danfoss SH scroll compressors in one circuit, three capacity steps, minimum load 33%
- Acoustic insulation of compressors: sound power 80 dB(A), sound pressure at 10 m 48 dB(A)
- Crankcase heaters on every compressor
- Sporlan electronic expansion valve with stepper motor
- Trane Symbio 800 controller with lead/lag rotation
We deliver, install and start up the unit, and can take care of its service afterwards.
Contact us. Tell us about your process, site and requirements. We will advise, propose a solution and prepare an offer. Write to info@chillertech.pl or use the contact form.
