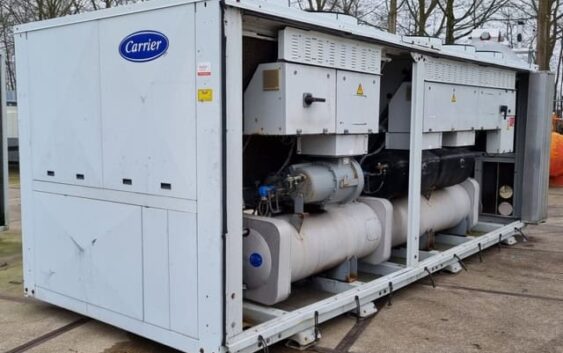

Carrier 818 kW chiller

Related Post

The Carrier 30GX 227 with a cooling capacity of 818 kW in standard conditions is used in plastics processing, pharmaceutical, metallurgical and chemical processes, machine tools and injection moulds. The Pro-Dialog+ control keeps it running well even under extreme load.

Basic data

  • Manufacturer: Carrier
  • Model: 30GX 227
  • Cooling capacity: 818 kW
  • Air-cooled
  • Refrigerant: R134a, circuit A 124 kg, circuit B 100 kg
  • Two refrigerant circuits
  • Compressors: 3 x Carlyle 06NA screw
  • Dimensions: 6000 x 2240 x 2450 mm
  • Year of manufacture: 2001
  • Weight: about 5535 kg
  • Quantity: 2 units

Lead time: about 5 to 7 working days.

Configuration

  • Carlyle screw compressors with POE oil
  • 10 Flying Bird II fans
  • Pro-Dialog+ control panel with access to about 100 parameters
  • 2 electronic expansion valves
  • Shell-and-tube evaporator
  • Cu/Al condenser coils

We can deliver, connect and start up the unit, and service it after installation. Ask about availability at info@chillertech.pl.
